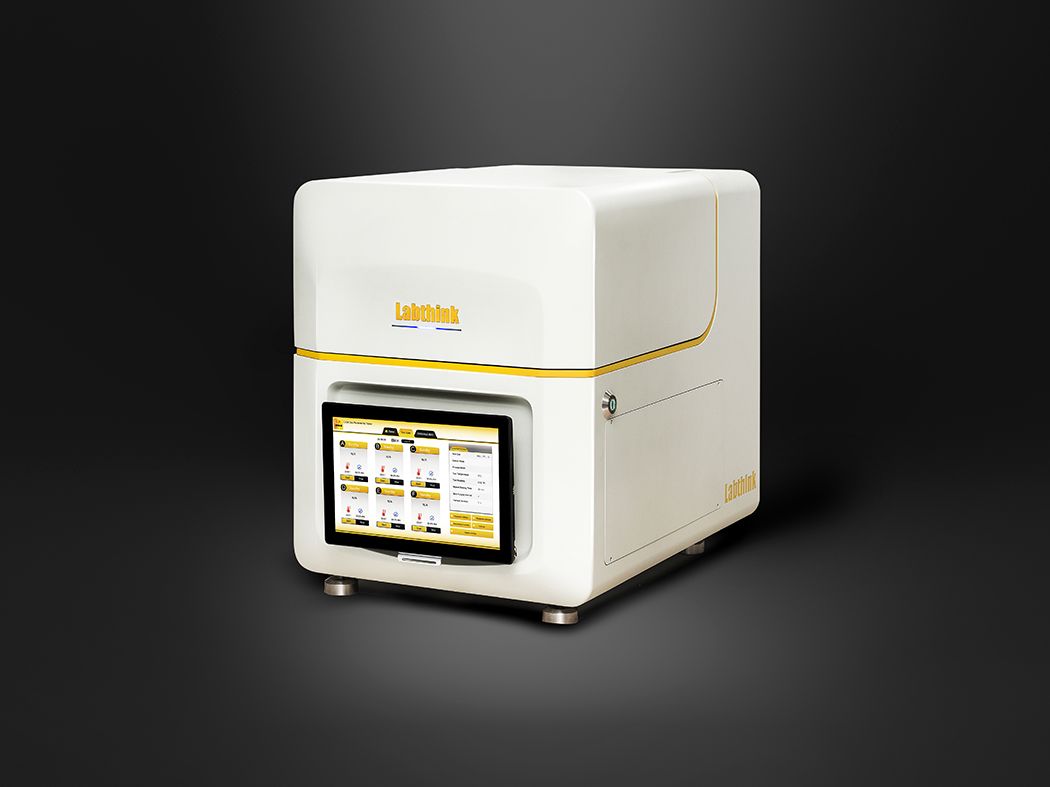

C406 Combo Oxygen/Water Vapor Permeability Tester complies with both ASTM D3985 and ASTM F1249. It can be used to test both OTR and WVTR of packaging materials in subsequence at preset temperature and humidity condition.
The pre-treated sample is clamped between the test chambers, oxygen or nitrogen with stable relative humidity flows on one side of the film, and the high purity nitrogen flows on the other side; oxygen or water molecules diffuse through the film into high-purity nitrogen on the other side, and are carried to the sensor by the flowing nitrogen. By analyzing the oxygen or water vapor concentration measured by the sensor, the oxygen or water vapor transmission rate can be calculated.
This test instrument conforms to the following standards:
ASTM D3985, ASTM F1307, GB/T 19789, GB/T 31354, DIN 53380-3, JIS K7126-2-B, YBB 00082003-2015
ASTM F1249, ISO 15106-2, GB/T 26253, JIS K7129, YBB00092003-2015
This test instrument is applicable to the determination of oxygen transmission rate of:
Applications |
---|
The oxygen and water vapor transmission rate tests of various plastic films, paper-plastic composite films, co-extrusion films, aluminized films, aluminum foil composite films, glass fiber aluminum foil paper composite films and other film-like materials. |
The oxygen and water vapor transmission rate tests of PP sheet, PVC sheet, PVDC sheet, metal foil, rubber sheet, silicon sheet and other sheet materials. |
Table 1: Test Parameters Note2
Parameter/Model | Model C406H | |
---|---|---|
OTR Test Range | cc/(m2·day) (Standard area 50cm2) | 0.02 ~ 200 |
cc/(m2·day) (MASK area 5cm2) | 0.2 ~ 2000 (Optional) | |
cc/(m2·day) (MASK area 1cm2) | 1 ~ 10000 (Optional) | |
OTR Resolution | cc/(m2·day) | 0.0001 |
OTR Repeatability | cc/(m2·day) | 0.02 or 1%, whichever is greater |
WVTR Test Range | g/(m2·day) (Standard area 50cm2) | 0.02 ~ 40 |
g/(m2·day) (MASK area 5cm2) | 0.2 ~ 400 (Optional) | |
g/(m2·day) (MASK area 1cm2) | 1 ~ 2000 (Optional) | |
WVTR Resolution | g/(m2·day) | 0.0001 |
WVTR Repeatability | g/(m2·day) | 0.02 or 2%, whichever is greater |
Temperature range | °C | 15 - 50 5 – 60 (Customized) |
Temperature fluctuation | °C | ±0.15 |
Humidity range | %RH (Within standard temperature range) | 0%, 5 - 90%±2%, 100% |
Extended functions | GP-01 Gas Purification Unit | Optional |
DataShieldTM Note3 | Optional | |
Computer System required by GMP | Optional | |
CFR21 Part11 | Optional |
Table 2: Technical Specifications
Test Chamber | 6 test chambers |
Specimen Size | 4.6” x 4.6”(11.7cm×11.7cm) |
Specimen Thickness | ≤120 Mil(3mm) |
Standard Test Area | 50 cm2 |
Carrier Gas | 99.999% high purity nitrogen, 99.5% oxygen (gas source is out of supply scope) |
Carrier Gas Pressure | ≥ 40.6 PSI / 280 kPa |
Port Size | 1/8 inch metal tubing |
Power Supply | 120VAC±10% 60Hz / 220VAC±10% 50Hz(either one of two) |
Instrument Dimensions | 23.6” H x 19.2” W x 25.9” D (60cm× 49cm× 66cm) |
Net weight | 220Lbs(100kg) |
