Technical Specifications
| Specifications | CHY-CB |
|---|
| Test Ranage | 0~2 mm (standard)
0~6 mm, 12 mm (optional) |
|---|
| Resolution | 0.1 μm |
|---|
| Test Speed | 10 times/min (adjustable) |
|---|
| Test Pressure | 17.5±1 KPa (film)
50±1 KPa (paper) |
|---|
| Contact Area | 50 mm2 (film)
200 mm2 (paper)
Note: Select one presser foot for film or paper; Customization is available |
|---|
| Instrument Dimension | 461 mm (L) x 334 mm (W) x 357mm (H) |
|---|
| Power Supply | AC 220V 50Hz |
|---|
| Net Weight | 37 kg |
|---|
This test instrument conforms to the following standards:
ISO 4593, ISO 534, ISO 3034, GB/T 6672, GB/T 451.3, GB/T 6547, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817
This instrument is applicable to the precision determination of thickness of:
| Basic Applications | Films, Sheeting, and Diaphragms |
|---|
| Paper and Paper Board |
| Foils and Silicon Wafers |
| Metal Sheets |
| Textiles and Non-woven fabrics, e.g. baby diapers, sanitary towels and other sheeting |
| Solid Electrical Insulating Materials |
| Extended Applications | Extended Test Range of 5mm and 10mm |
|---|
| Curved Presser Foot |
Professional

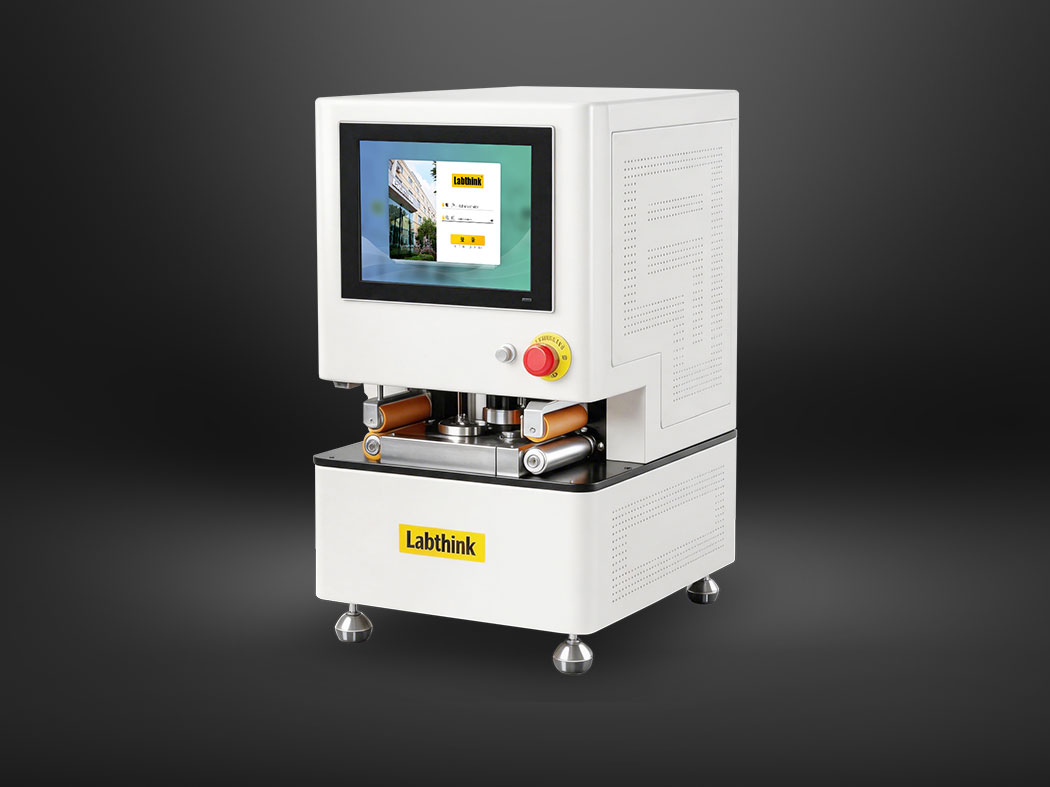

CHY-CB Thickness Tester is designed based on the mechanical contacting method, which effectively ensures standard and accurate test data. The instrument strictly conforms to multiple national and international standards.
Contact area and pressure are strictly designed according to standard requirements, while customization is also availableAutomatic lifting presser foot facilitates to minimize system errors that caused by human factors during the testManual or automatic operating mode for convenient testDisplays the real-time data of maximum, minimum, average and standard deviation value for data analysisEquipped with standard block for system calibration to ensure uniform and accurate test data High-end
This instrument utilizes Labthink's latest embedded computer control system, which provides a better performance than traditional single chip system.
Embedded computer control system provides safer and more reliable data management as well as test operationThe system can be operated easily by a standard monitor, a mouse and a keyboard; without requiring a PCThe system is equipped with four USB ports and dual Internet ports for convenient input, output and data transfer Intelligent
The instrument is equipped with Labthink's latest intelligent operating software, with user-friendly operating interface and intelligent data management. It also supports LystemTM Lab Data Sharing System, which ensures uniform management of test results and test reports.
Intelligent reminding of sensor calibrationEmbedded help document for user viewing at any timeMulti-level account control for better data management and protectionThe system utilizes embedded data saving technology to save detailed information and provide convenient and various searching and viewing functionsOne time value input and the system automatically gives data comparison after each testCalibration data recovery function to reduce mistaken operation affectsSupports LystemTM Lab Data Sharing System for uniform and systematic data management
- Standard Configurations
- Mainframe, Monitor, Keyboard, Mouse and Standard Block
- Optional Parts
- Presser Foot, Extra Pressurizing Weight, LystemTM Lab Data Sharing System and Printer(compatible with PCL3)
